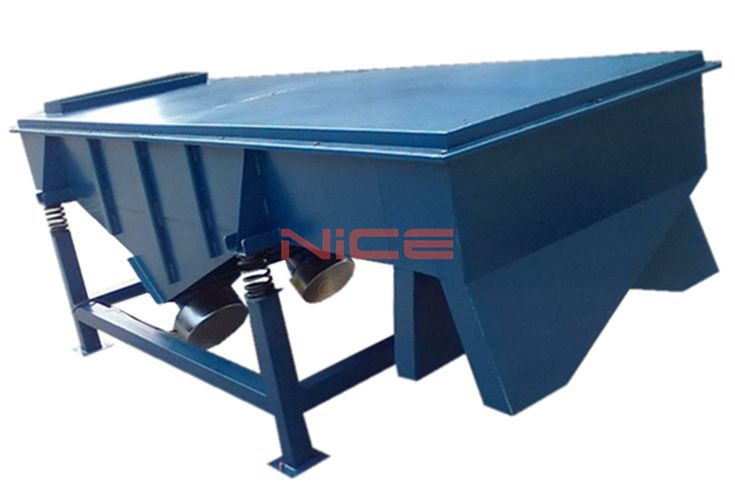

NMC1025 linear vibrating screen
Technical Parameters:
Model | NMC-520 | NMC-525 | NMC-530 | NMC-535 | NMC1020 | NMC1025 | |
Nominal size (mm) | 500×2000 | 500×2500 | 500×3000 | 500×3500 | 1000×2000 | 1000×2500 | |
Material diameter (mm) | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | |
Vibration time times/min | 960 | 960 | 960 | 960 | 960 | 960 | |
Screen slope | 1°_7° | 1°_7° | 1°_7° | 1°_7° | 1°_7° | 1°_7° | |
Vibration amplitude | 3--4.5 | 3--4.5 | 3--4.5 | 3--4.5 | 3--4.5 | 3--4.5 | |
Layer number | 1--6 | 1--6 | 1--6 | 1--6 | 1--6 | 1--6 | |
Power(Kw) | 2×(0.4-0.75) | 2×(0.4-0.75) | 2×(0.4-0.75) | 2×(0.4-0.75) | 2×(0.4-1.1) | 2×(0.4-1.1) | |
Size | Length | 2740 | 3240 | 3740 | 4240 | 2740 | 3240 |
Width | 870 | 870 | 870 | 870 | 1370 | 1370 | |
Height | 1400 | 1400 | 1400 | 1440 | 1440 | 1440 | |
Model | NMC1030 | NMC1035 | NMC1040 | NMC1530 | NMC1535 | NMC1540 | |
Nominal size(mm) | 1000×3000 | 1000×3500 | 1000×4000 | 1500×3000 | 1500×3500 | 1500×4000 | |
Material diameter (mm) | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | |
Vibration time times/min | 960 | 960 | 960 | 960 | 960 | 960 | |
Leaning angle of screen | 1°_7° | 1°_7° | 1°_7° | 1°_7° | 1°_7° | 1°_7° | |
Amplitude | 3--4.5 | 3--4.5 | 3--4.5 | 3--4.5 | 3--4.5 | 3--4.5 | |
Layer number | 1--6 | 1--6 | 1--6 | 1--6 | 1--6 | 1--6 | |
Power (Kw) | 2×(0.75-1.5) | 2×(0.75-1.5) | 2×(0.75-1.5) | 2×(1.1-2.2) | 2×(1.1-2.2) | 2×(1.1-2.2) | |
Size | Length | 3740 | 4240 | 4740 | 3740 | 4240 | 4740 |
Width | 1370 | 1400 | 1400 | 1900 | 1900 | 1900 | |
| |||||||
Nice Machinery is dedicated to solving the toughest screening, feeding and conveying problems while holding quality, safety and reliability paramount. We strive to consistently offer solutions that meet and often exceed customer expectations with regard to performance, dependability, ease of maintenance, price and delivery.
Nice Machinery offers the industry’s broadest range of vibrating sieves and particle separation equipment for wet, dry or slurry based material.Equipment serves the needs of all standard separation requirements and offers high capacity and efficiency with mesh size ranging from 10mm down to 25 micron for fine particle separation. Additional......[More>>]
